How to Replace a Bathroom Exhaust Fan: A Step-by-Step Guide for the Handy (and Brave)
DIY Guide · Bathroom Ventilation
How to Replace a Bathroom Exhaust Fan
The honest contractor's guide — what you can do yourself, what to watch for, and when to hand it off.
A Danville client called us a few years back. Her bathroom exhaust fan had been making a grinding noise for about six months. She'd been meaning to replace it. Then the grinding stopped, and she assumed the problem had resolved itself.
It hadn't resolved itself. The motor had seized. For six months after that, the fan ran but moved no air — and all that shower steam had been sitting in her bathroom, soaking into the drywall and the ceiling cavity above. By the time we got there, the damage wasn't a fan replacement anymore. It was mold remediation, drywall repair, and repainting. Months of "I'll get to that" turned into a significantly larger project.
So: if your fan is noisy, weak, or dead, fix it now. Not next weekend. Now.
A like-for-like fan swap — same location, same duct size, existing wiring in place — is a manageable DIY project for a confident homeowner. I'll walk you through exactly how to do it, what to check before you buy anything, and where the decision to call a professional is the right one. No condescension, no unnecessary hand-holding, no AI-generated photos of a smiling person on a ladder.
"A fan swap is one of the more satisfying DIY wins available. One to two hours, under $300, and your bathroom works correctly again. Just don't skip the pre-purchase homework."
Before You Buy Anything: Four Measurements
The number one mistake in fan replacements is buying a fan first and measuring second. Take these four measurements before you set foot in a hardware store or click anything online.
Pre-Purchase Measurements
- Existing housing dimensions. Pull the grille cover off and measure the housing footprint — the metal box that sits in the ceiling opening. Standard sizes are 7"×7" and 9"×9", but older fans vary. Your new fan's housing must fit the existing ceiling cutout, or you're doing drywall work.
- Duct diameter. The duct collar on the fan housing connects to your existing ductwork. Standard is 4 inches; some units use 3 inches. Measure the existing collar before buying — a mismatch requires an adapter or duct modification.
- Bathroom square footage. Length × width of the bathroom. This gives you your minimum CFM requirement. A 60 sq ft bathroom needs at least 60 CFM; add 50 CFM if there's an enclosed shower or jetted tub. Don't downsize from what you have — size up if the current fan has been underperforming.
- Existing wiring configuration. Before you disconnect anything, photograph the wiring. Note whether it's a simple two-wire setup (fan on one switch) or split-wired (fan and light on separate switches). This determines whether your replacement fan needs to match that configuration — or whether you'll need an electrician to adjust.
???? The Fan I Have in My Own Bathroom
The Panasonic WhisperCeiling DC series is what I installed in my own bathroom, and it's one of my favorite features in the house. It moves air effectively, runs at a near-silent 0.3 sones, and has a built-in humidity sensor that turns it on automatically during a shower and off when the air clears.
I stopped thinking about whether my bathroom fan was on. That's the goal. It just handles itself.
That said — the right fan depends on your CFM needs, duct size, and existing wiring. The WhisperCeiling is my personal pick for a quality straightforward swap. Compare it against your measurements before ordering.
Read This Before You Start: The Go / No-Go Decision
A like-for-like swap at the same ceiling location with the same duct size and existing wiring is a DIY project. Everything beyond that starts adding complexity that may warrant a professional — not because you're not capable, but because the tradeoffs (time, risk of error, code compliance) change the math.
✔ DIY is appropriate when all of these are true:
Same location: you're replacing the existing fan, not moving it to a better position over the shower.
Same duct size: the replacement fan uses the same 4" or 3" collar as the existing duct run.
Existing wiring is in place and clearly labeled: standard black/white/ground configuration, already on a dedicated circuit.
No new ductwork: the existing duct run is intact and vents to the exterior (not the attic).
The new fan is same weight or lighter: no ceiling reinforcement required.
✗ Call a professional when any of these are true:
The existing duct vents into the attic, not outside. This is a duct rerouting job, requires roof or exterior wall penetration, and involves code compliance decisions. Don't just swap the fan and leave the attic-venting problem in place — you're creating a moisture trap that will damage your roof structure.
The existing wiring is aluminum, ungrounded, or you're not certain what you're looking at. Bathroom electrical requires GFCI protection and correct grounding. If you open the housing and find aluminum wiring, knob-and-tube, or anything that looks wrong, stop and call an electrician.
You're moving the fan location or upgrading from a fan-only to a fan/light/heat combo. New ceiling cutout, new wiring run, potentially a dedicated circuit — this is a full electrical project.
You're in a Rossmoor condo. See the section below before starting anything.
???? Trade Term: GFCI
A GFCI (Ground Fault Circuit Interrupter) is an outlet or breaker that monitors current flow and trips almost instantly if it detects an imbalance — which occurs when electricity takes an unintended path, like through water or a person. California code requires GFCI protection on all bathroom circuits, including exhaust fan circuits. If the existing fan circuit isn't GFCI-protected — which is common in older East Bay homes — a fan replacement is a good moment to address that. Your electrician can add GFCI protection at the breaker panel or at the nearest outlet on the circuit.
Tools and Materials
| Item | Required | Notes |
|---|---|---|
| Non-contact voltage tester | ✔ Required | Do not skip this. Confirm power is off before touching any wiring. |
| Phillips and flathead screwdrivers | ✔ Required | Multiple sizes; housing screws vary by manufacturer. |
| Wire connectors (wire nuts) | ✔ Required | Match gauge of existing wiring; typically 14 AWG for 15-amp circuits. |
| Foil HVAC tape | ✔ Required | Seal the duct connection. Not standard duct tape — foil tape only. Standard duct tape degrades in moist conditions. |
| Flashlight or headlamp | ✔ Required | Power will be off; you need a clear view of the wiring connections. |
| Ladder or step stool | ✔ Required | Rated for your weight. Bathroom floors are slippery — rubber feet essential. |
| Drill with bits | ◐ Useful | Some housing mounts require drilling into joists; others are spring-clip only. |
| Pry bar or putty knife | ◐ Situational | Useful if old housing is secured with hardened adhesive in addition to screws. |
| Dust mask and safety glasses | ◐ Recommended | Ceiling cavity debris is unpleasant. Older homes may have fiberglass insulation above. |
The Installation: Step by Step
Before Step 1 · Non-Negotiable
Turn Off the Breaker — Then Verify With the Tester
Go to your electrical panel and turn off the circuit serving the bathroom. Flip the light switch on — if it doesn't come on, you have the right breaker. Then use a non-contact voltage tester on the wiring inside the fan housing before touching any wires. The tester should show no voltage. If it shows voltage, something is wrong — double-check the breaker, confirm you have the right circuit, or call an electrician before proceeding.
Working on live bathroom wiring is a serious shock hazard. This step is not optional.
Step 01
Remove the Grille and Photograph the Wiring
Pull the grille cover straight down. Most grilles are held by spring wire clips — squeeze both sides together to release and lower the cover. Some older grilles are screwed in place.
Before you disconnect anything, take a clear photo of the wiring connections inside the housing. Black to black, white to white, bare copper or green to ground — but photograph it regardless. If something looks unexpected (aluminum wiring, more wires than expected, no ground wire), stop and assess before proceeding.
???? Pro move: take a photo that shows both the wiring AND the housing mounting situation so you can reference both when installing the new unit.
Step 02
Disconnect the Wiring and Remove the Old Housing
Unscrew the wire connectors (wire nuts) and separate the wires. Let the existing wires hang free from the ceiling — they'll connect to the new housing in the same configuration.
Disconnect the duct from the old housing — it's typically held by a slip fit and a ring of foil tape. Cut the tape and slide the duct collar out. Note the duct diameter and condition of the duct material. Flexible plastic accordion duct that's kinked or collapsed should be replaced with rigid or semi-rigid metal duct now — while you have access.
Remove the housing mounting screws (typically 2–4 screws into the ceiling joist or a bracket). Lower the housing carefully through the ceiling opening. If it's stuck, it may be sealed with decades of paint — run a putty knife around the perimeter before forcing it.
Step 03
Inspect the Duct Run
Before installing the new fan, look up into the ceiling cavity with your flashlight. Confirm the duct run: it should go toward an exterior wall or the roof, not into the attic cavity. If you can see the duct disappearing into loose insulation with no visible termination, that's a problem worth solving now — either by following and confirming the duct exits the building, or by flagging it for a professional to address before you button up the new fan.
Check the existing duct for damage, kinks, or disconnected sections. A fan that vents into a disconnected duct in the ceiling cavity is nearly as bad as one that vents into the attic. Repair or replace any damaged sections with rigid metal duct and foil tape connections.
⚠️ Foil HVAC tape only at all duct connections — not standard duct tape, which degrades with moisture and heat cycles.
Step 04

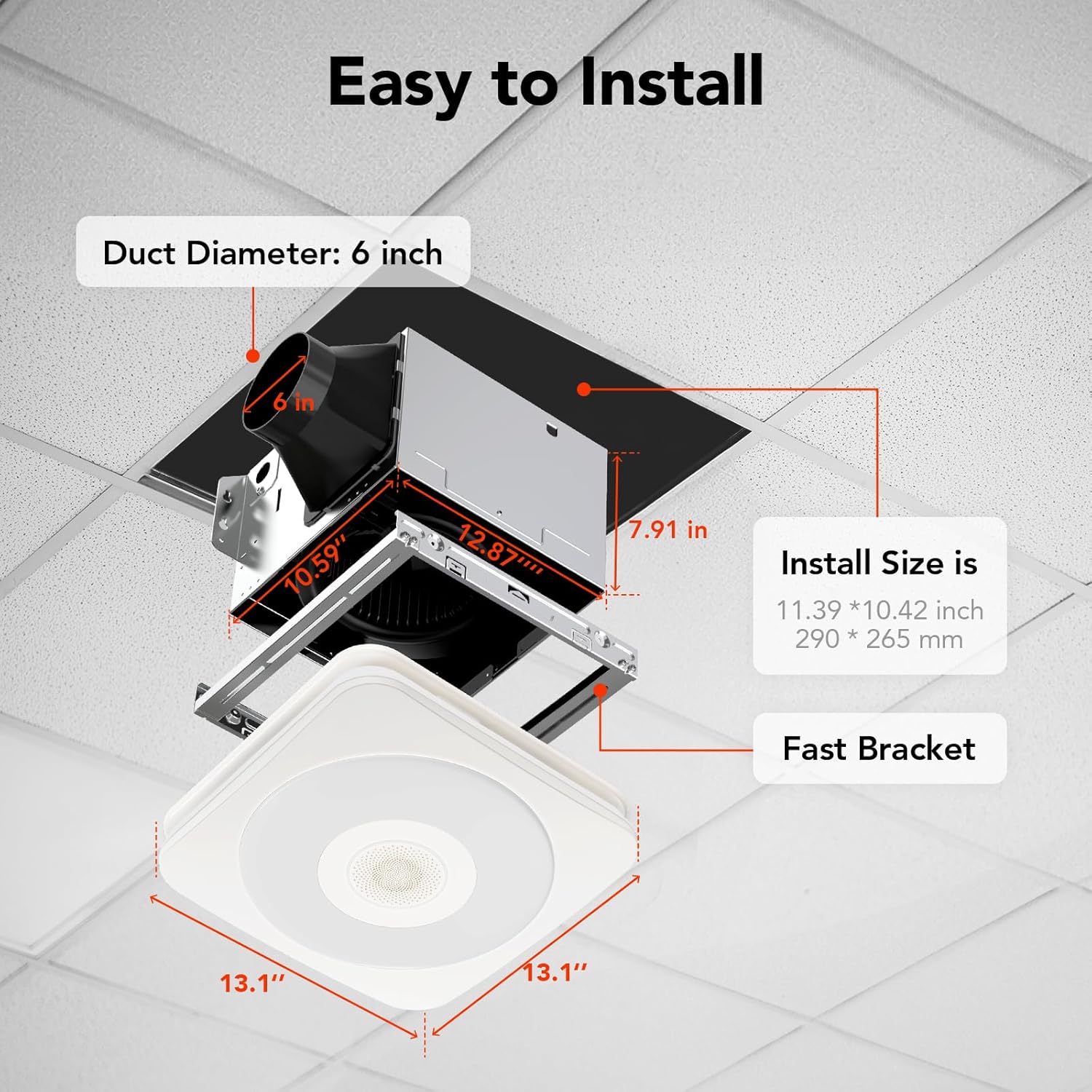

Install the New Fan Housing
Read the new fan's installation instructions before starting — mounting methods vary by manufacturer. Common approaches are: screwing the housing directly to a ceiling joist, using an adjustable brace bar that spans between joists, or spring-clip mounting that expands to grip the drywall from above.
If the new housing is smaller than the ceiling cutout: most fans include a decorative trim flange that covers the gap. If the new housing is larger: you'll need to enlarge the ceiling cutout, which is a drywall job — cut carefully with a drywall saw following the new housing template.
Slide the housing up into the ceiling opening and secure per the manufacturer method. It should be firm — no wobble, no play. A loose housing vibrates during operation and sounds worse than the fan you just replaced.
Step 05
Connect the Duct
Slide the duct over the fan's collar (or the collar into the duct, depending on orientation) and secure with foil HVAC tape wrapped around the full circumference of the connection. Pull the duct taut — a sagging duct traps condensation and reduces airflow. If the duct run is flexible accordion-style, try to minimize bends; every 90° turn reduces effective CFM by approximately 10%.
If the duct is too short to reach the new housing collar from its existing position, extend it with a rigid metal elbow or straight section and foil-tape all connections. Do not use flexible accordion duct to make up more than 6–8 inches of slack — the corrugated surface creates turbulence and is difficult to properly seal.
Step 06
Connect the Wiring
Route the existing wiring into the fan housing's wiring compartment through the appropriate knockout or entry hole. Connect black to black (hot), white to white (neutral), and bare copper or green to the green screw or bare wire in the fan housing (ground). Twist wire connections together and cap with wire nuts — pull each connection firmly to confirm it won't pull loose.
Tuck the connected wires neatly into the wiring compartment — don't leave them hanging loose inside the motor housing where they could contact moving parts. Secure the wiring compartment cover if the fan has one.
⚡ If you're installing a combination fan/light unit with separate switch wires, refer to the wiring diagram in the fan's installation manual. Two-wire setups where fan and light share one switch are not the same as split-wire setups — the diagram will show exactly which wire does what.
Step 07
Insert the Motor/Blower Assembly and Attach the Grille
Most fans separate into two pieces: the housing (which mounts in the ceiling and stays) and the motor/blower assembly (which plugs into the housing and can be removed for cleaning). Slide or plug the motor assembly into the housing per the manufacturer instructions — it typically clicks or locks into place.
Attach the grille cover. Spring-clip grilles compress and push up into the housing; screw-mount grilles thread onto mounting points. Make sure the grille sits flush against the ceiling — gaps let ceiling cavity air (and the occasional spider) into the room.
Step 08 · Final
Restore Power and Test
Flip the breaker back on. Turn the fan on at the switch. Listen: you should hear a quiet, even hum — not a grinding, rattling, or intermittent sound. Any noise beyond a smooth low hum indicates a loose component, an improperly seated motor assembly, or a housing vibrating against drywall. Turn it off and investigate before assuming it'll "settle in."
Test airflow: hold a tissue near the grille. It should deflect consistently toward the grille. A tissue that barely moves suggests a duct connection problem — check for disconnected sections or kinked flexible duct in the ceiling cavity.
Run the fan for five minutes and check the area around the grille for any air movement in the wrong direction — cold drafts indicating a backdraft damper problem at the exterior termination, or warm attic air suggesting the duct has come loose somewhere in the run.
✔ Final check: verify the bathroom light still works, the fan circuit breaker hasn't tripped, and all wire connections hold firm when the housing is lightly touched.
???? Rossmoor Homeowners — Read Before Starting
Fan replacement in Rossmoor co-op condominiums is one of the more nuanced DIY questions we get. A straight motor swap — replacing only the internal motor/blower assembly without touching the housing, duct, or wiring — is typically considered owner-level maintenance and may not require Mutual approval. Check your Mutual's rules to confirm this interpretation applies to your specific building.
Any work that involves the housing, ductwork, or wiring requires Mutual board approval before beginning — particularly if the duct penetrates a shared ceiling or wall cavity. Some Rossmoor Mutuals have specific requirements about licensed contractors for wet area electrical work. We've navigated approval submissions across Rossmoor's communities and can help you understand what your specific Mutual will require. Call before you start anything beyond a motor swap: (925) 937-4200.
Common Questions
Can I replace an exhaust fan without attic access?
Yes — look for retrofit models specifically designed for ceiling-only installation. These use adjustable mounting brackets that expand to grip the drywall from below, so you never need attic access. Panasonic's WhisperFit series is designed for this. The limitation: you won't be able to inspect or repair the duct run above the ceiling, so confirm the duct is intact and vents to the exterior before installing a retrofit unit.
My new fan is quieter but barely moves air. What's wrong?
Almost always a duct issue. The most common causes: a duct connection that came loose during installation, flexible accordion duct that's kinked or compressed in the ceiling cavity, or a backdraft damper at the exterior that's stuck closed. Turn the fan off, go back into the ceiling cavity and check every connection. A disconnected duct in the ceiling means your fan is just moving air into the ceiling void.
How do I know if my existing fan vents to the attic vs. outside?
Follow the duct from the fan housing — with a flashlight and ideally attic access. The duct should terminate at a roof cap (a mushroom-shaped vent on the roof) or a louvered wall vent on an exterior wall. If you find the duct end in the attic insulation without a visible vent cap, it's venting to the attic. This needs to be corrected before or as part of the fan replacement — not ignored. A plumber or HVAC contractor can reroute and cap the duct; it's not a large job in most single-story homes.
The existing fan has a heater element — do I need to replace it with another heater model?
Not necessarily, but be aware that the heater element may be on a separate circuit or have additional wiring beyond the standard fan circuit. Before removing a combo fan/heater, confirm the wiring setup and whether your replacement unit needs to match it. If the existing heater was on a dedicated circuit and you're replacing with a fan-only unit, that dedicated circuit will still be there but disconnected — which is fine electrically, but worth noting if you ever want to add a heater again later.
How long does a bathroom exhaust fan typically last?
Quality fans with clean motors last 10–15 years with normal use. Builder-grade fans from the 1980s and 90s — the ones that sound like lawn mowers — were often installed and never maintained, which shortens their effective life significantly. When a fan starts sounding louder than it used to, that's a bearing wearing out. It'll run for a while after that, but it's moving less air than it should. Don't wait for it to stop completely.
