Shower Entry Design: Curb, Threshold, or Curbless?
Shower Entry Design: Curb, Threshold, or Curbless?

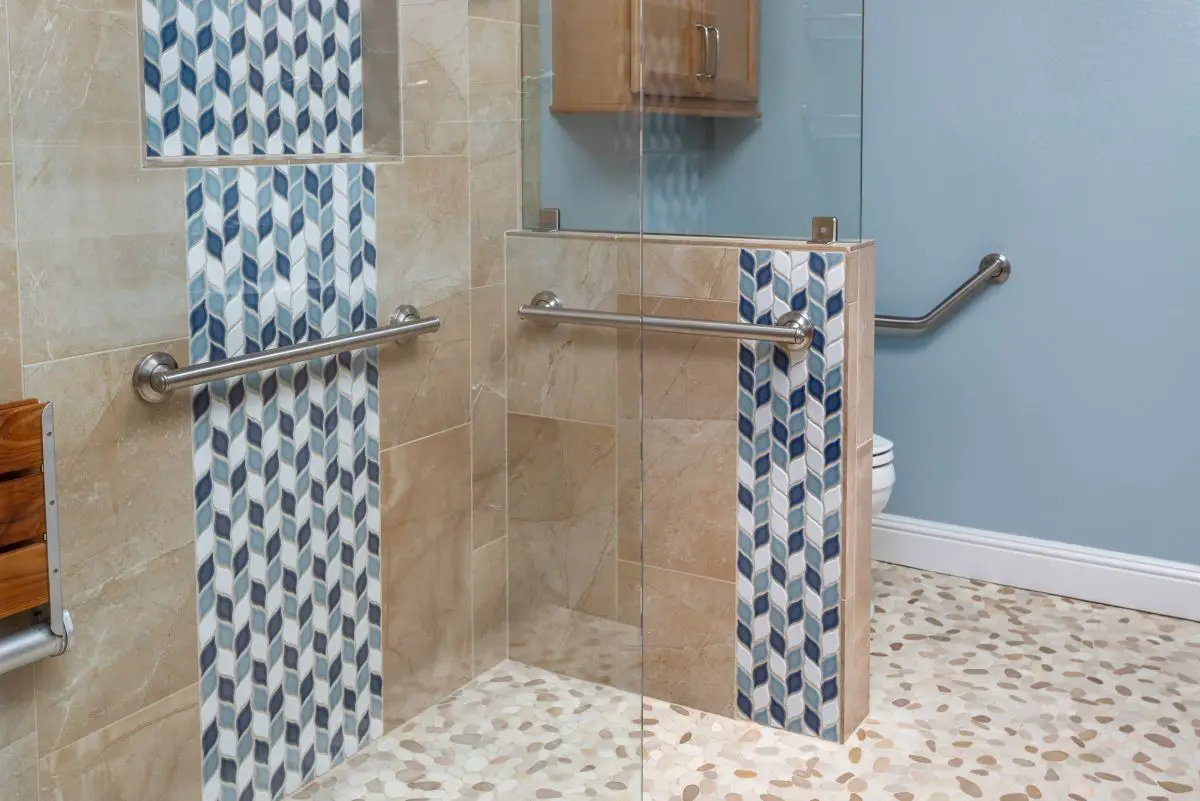

A custom accessible shower design featuring grab bars, a low-threshold entry, and decorative mosaic tile accents. This layout demonstrates how custom showers can be tailored for safety, comfort, and style without sacrificing visual appeal.
There's one bathroom design decision that doesn't get nearly the attention it deserves — and it's not the tile, the vanity, or the fixtures. It's the floor of your shower entry. That three-to-six-inch curb, or the absence of one, shapes how your bathroom feels and functions every single day.
We've installed hundreds of showers across the East Bay — everything from traditional curbed enclosures in homes that needed a budget-minded refresh to fully curbless walk-in showers in Rossmoor remodels where safety and accessibility were the priority. Each approach makes sense in the right context. None of them is right for everyone.
Here's the honest breakdown.
The Low ThresholdThe Middle Ground
Trade Jargon: "Linear Drain"
A linear drain is a long, narrow drain channel — usually positioned along one wall of the shower — as opposed to a traditional round center drain. In a curbless shower, it allows you to slope the entire floor in one direction rather than toward a central point, which makes for a simpler, cleaner tile layout and more comfortable footing. Most of the curbless showers we install use a linear drain near the back wall or the entry edge. They require more planning and more subfloor depth than a standard drain, but the result is worth it.

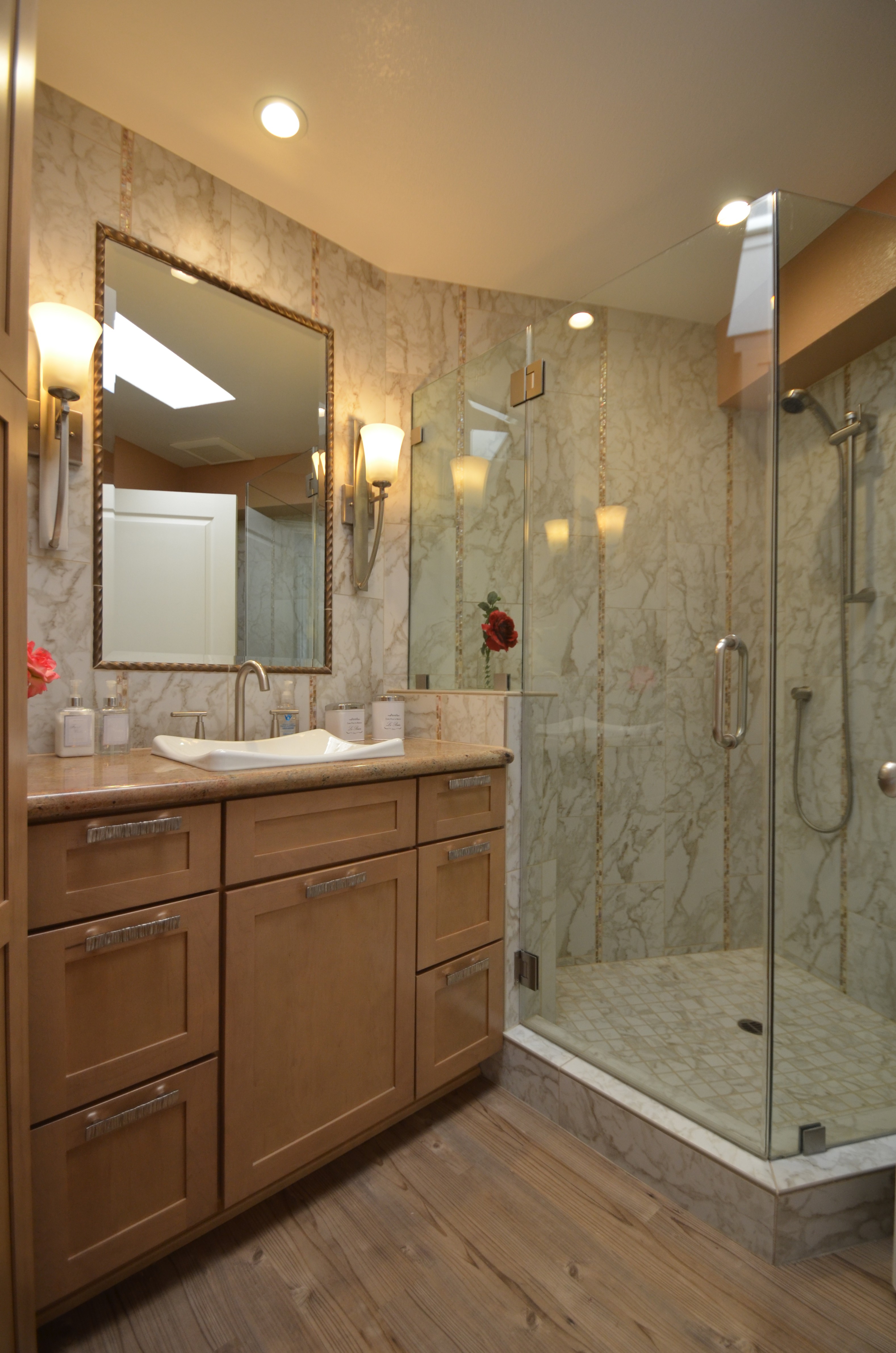

A custom bathroom featuring a marble-look tile shower with a frameless glass enclosure, paired with a warm wood vanity and modern lighting. The detailed tile layout and full-height surround highlight the elevated design and flexibility of a custom shower installation.
Side by Side: The Numbers
| Factor | Curb | Low Threshold | Curbless |
|---|---|---|---|
| Entry Height | 3–6 inches | 1–2 inches | 0 inches |
| Water Control | Excellent — passive containment | Good — with proper glass | Requires precise slope + drain |
| Accessibility | Low | Moderate | Full — ADA compatible |
| Relative Cost | $ — lowest | $$ — mid-range | $$$ — highest |
| Maintenance | More corners to scrub | Easier than curb | Easiest — open floor |
| Visual Impact | Traditional, contained | Clean, subtle barrier | Seamless, expansive |
| Installation Complexity | Standard | Moderate | High — waterproofing critical |
| Resale Appeal | Solid | Good | Strong — especially in East Bay |
How to Actually Decide
The comparison table tells you what each option is. This section tells you which one is probably right for you.
Is mobility a current or future concern?
If yes — or even if maybe someday — go curbless. Installing it now is dramatically cheaper than retrofitting later. You can never go back and add subfloor depth without a full demo.
What's the subfloor situation?
A curbless shower with a linear drain needs adequate depth below the floor. In concrete slab construction — common in Rossmoor — this requires cutting and grinding. We assess this before we quote, so there are no surprises.
Is this a full remodel or a targeted update?
A full bathroom remodel is the right time to go curbless — the floor is already coming up, the plumbing is already open. A targeted "refresh the shower" job may not justify the scope a curbless conversion requires.
What does the bathroom feel like right now?
A curbless shower that opens to a continuous tile floor makes a bathroom feel materially larger. If your bathroom already feels small and closed-in, this is the design move that changes it.
Are kids or grandkids regular users?
Young children and curb showers are a tripping combination. Low-threshold is the easy compromise. Curbless is the right long-term answer for households that change over time.
What's driving the budget?
If cost is the main constraint, a well-designed curb shower with good tile and a frameless door still looks sharp. The goal is to get the best version of whichever option fits, not to push you toward the most expensive option.
Trade Jargon: "Flood Test"
Before tile goes down on a curbless shower pan, we plug the drain and fill the floor with water to verify that the waterproofing membrane holds — no leaks, no seepage, no movement. We leave it for 24 hours and come back. If it passes, we tile. If it doesn't, we fix it before it's ever covered up. A flood test adds one day to the schedule. Skipping it and finding a leak after the tile is set adds weeks and thousands of dollars.
From the Jobsite: A Rossmoor Curbless Conversion
A client on Tice Creek Drive called us because she'd caught her foot on the shower curb twice in the past year. Not a fall — not yet — but enough to scare her. The original shower was a small 36"×36" curbed enclosure that had been there since the unit was built in 1966. High curb, cramped, and the grout had been patched so many times it looked like a road map.
We opened the floor, found what we expected in a slab foundation — concrete that needed grinding to create the drain depth — and built out a full curbless shower to 42"×42" by reconfiguring the adjacent wall. Linear drain along the back wall. Large-format porcelain on the floor and walls so the space felt cohesive and continuous. Fixed glass panel instead of a door, so there's nothing to step over or fumble with.
The finished shower was big enough to stand in comfortably, beautiful enough that she stopped thinking about it as a safety upgrade and started thinking about it as her favorite part of the bathroom. Which is exactly what it should be.
"The best time to go curbless is during a full remodel, when the floor is already open. The second-best time is right now — before the curb causes an actual problem."

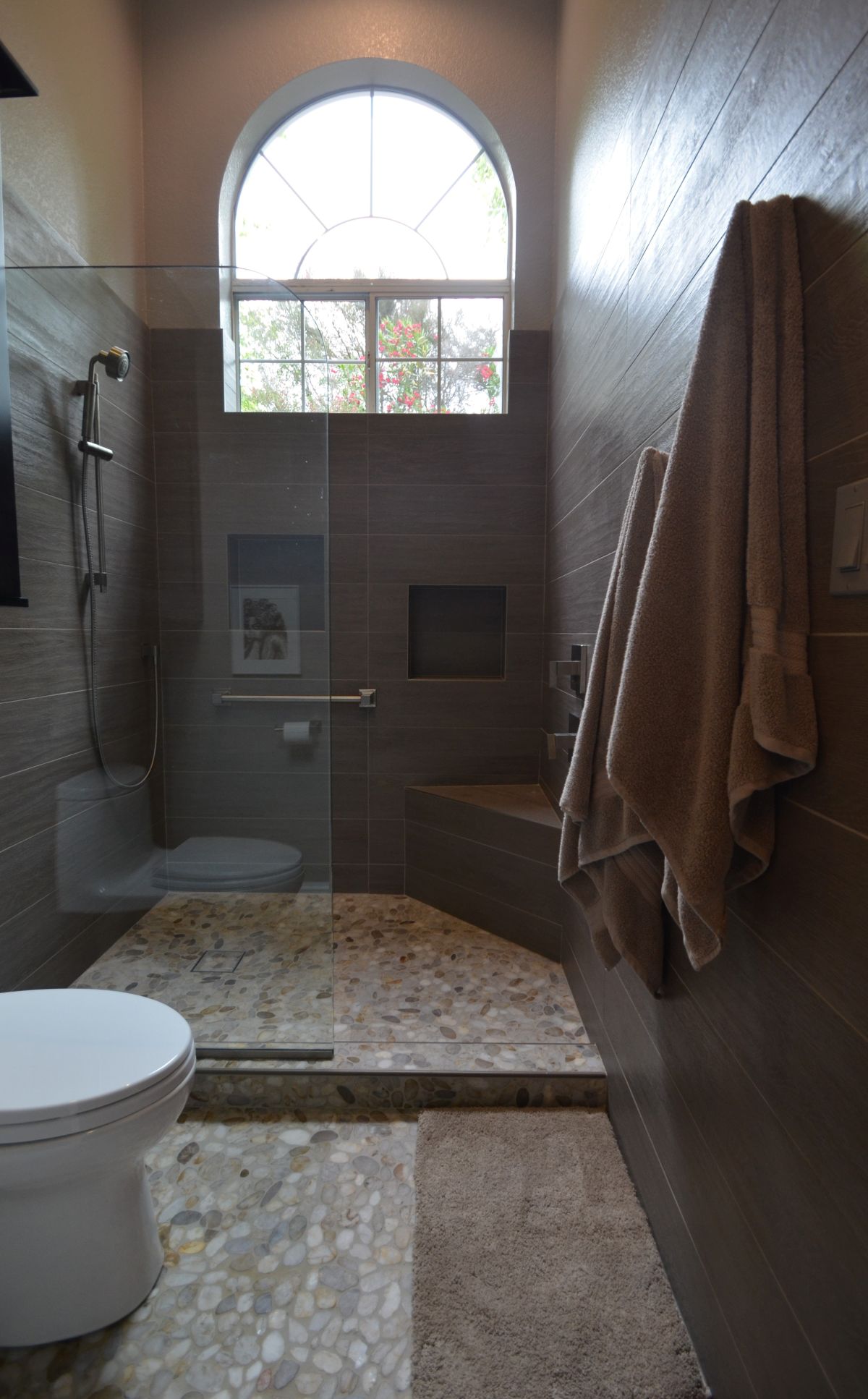

A spa-inspired bathroom featuring a walk-in shower with pebble stone flooring, a built-in bench, and a large arched window for natural light. The custom layout creates a relaxing, high-end feel while maximizing functionality.
Frequently Asked Questions
How much more does a curbless shower cost than a standard curb?
In the East Bay, expect to add $2,000–$5,000 to your shower budget for a curbless conversion versus a standard curb — primarily driven by drain system costs, the additional waterproofing scope, and subfloor work if you're on a slab. The range is wide because it depends on your foundation type, drain placement, and how much floor prep is needed. We assess this specifically at your site before we quote.
Does a curbless shower mean water gets everywhere?
Only if it's designed wrong. A properly built curbless shower has a precisely sloped floor that directs all water to the drain efficiently. A fixed glass panel or full enclosure handles splash. The key word is "properly built" — the slope has to be consistent and the drain has to be sized correctly. We've seen poorly executed curbless showers that do leak. That's a workmanship problem, not a design problem.
Do I need permits for a shower conversion in Walnut Creek?
Yes, if it involves plumbing changes — which a curbless conversion typically does (new drain location, subfloor work). We pull permits through the City of Walnut Creek as standard practice. For Rossmoor residents, you'll also need Mutual architectural approval before we start. We handle both simultaneously so neither system holds up the other.
Can I add a bench to a curbless shower?
Yes — and we recommend it. A built-in bench in a curbless shower is the natural companion to a barrier-free entry. It gives you somewhere to sit while bathing, somewhere to rest, and somewhere to put a foot while you're getting dressed. We build them out of the same tile as the shower walls so they look intentional. They add cost but not as much as people expect.
Is a curbless shower harder to keep clean?
It's actually easier. No curb means no curb corners collecting soap scum. The open floor is one continuous surface that you can squeegee or mop in seconds. The main maintenance variable is the grout — we recommend epoxy grout on curbless shower floors because it's nearly impermeable and doesn't need periodic sealing the way sanded grout does.
Related: Our Bathroom Remodeling Services
Not Sure Which Entry Is Right for Your Bathroom?
We'll look at your space, your subfloor, your goals, and give you an honest recommendation — not the most expensive one, the right one. Call us or reach out online to get started.
